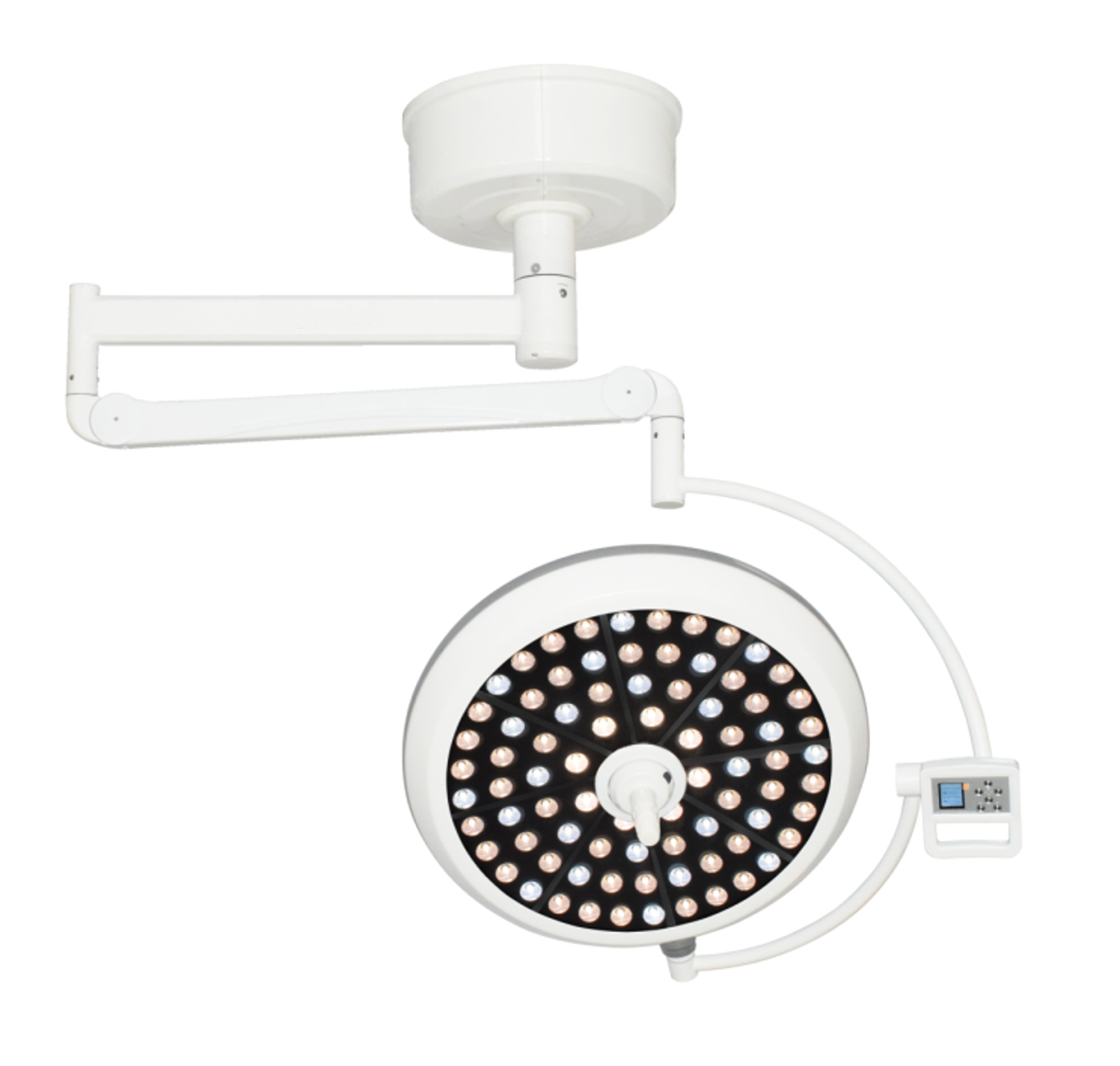

Specification of the lights
1. Illumination: 40,000-180,000Lux/30,000-160,000Lux
2. Color temperature (adjustable): 3700k-5000K
3. Color rendering index: 85-98 (adjustable)
4. Focus depth: ≧1200mm
5. Spot diameter: 160-280mm (adjustable)
6. Brightness adjustment: 1%-100%
7. LED service life: ≥80,000h
8. Number of bulbs: 80pcs/48pcs
8. Power supply voltage: AC100-240V 50/60HZ
9. Operator's head temperature increasing: ﹤1℃
10. Power consumption: LED700: 80W/LED500: 48W
Internal Camera System
Full HD independent camera system is installed in the center of the main lamp head, no affect to
adjust the light focus. Through the functions of fast focus, strong light suppression, anti-flicker,
etc., it can provide high-quality images with clear images, true colors, and rich details in a highilluminance
shadowless lamp environment of up to 18000lux; the built-in ND filter and a variety of
scene modes make it more suitable for shooting under shadowless lamps.
• Up to 4.35 million pixels progressive scan 1/2.8” CMOS;
• 10x optical zoom;
• 3G-SD output; network output
• Maximum resolution up to 1920X1080@60;
• Support multiple scene mode switching;
• Adopt medical electrical standard design, electrical and material properties are stable and
reliable.
• Support fast start and low latency functions, the startup time is less than 10s, and the video
output delay is less than 100ms.
• Provide MCX small SDI interface, flexible selection of UART or RS485 communication interface,
support VISCA, Pelco P/D and other communication protocols.
• Ultra-small size, the outer diameter of the movement is 60mm, and the weight is 190g

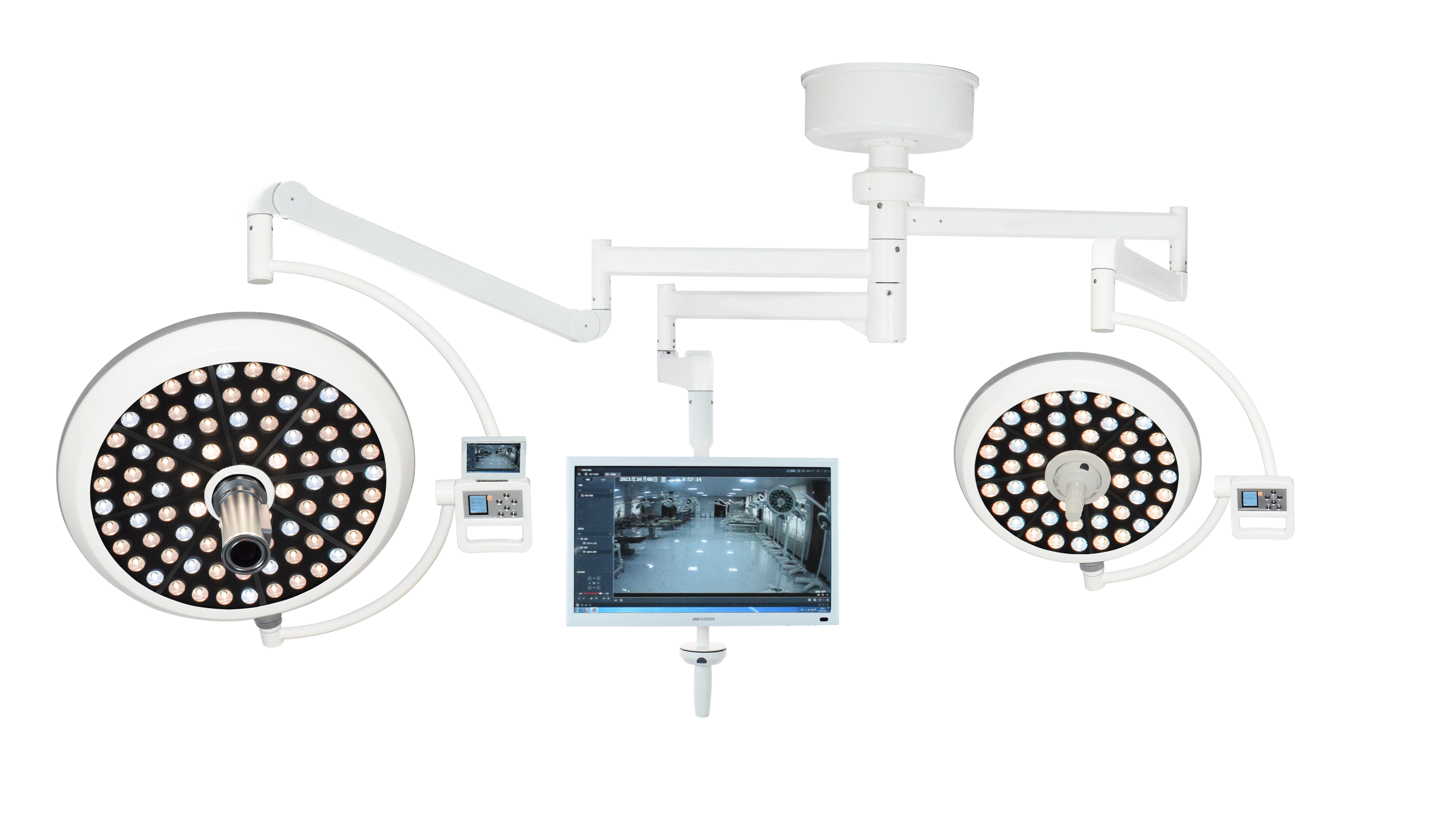

Recording and Display
High-definition, integrates audio and video access, encoding, storage, decoding&display, and local interface operation functions, meet the needs of high-quality audio and video recording and decoding display.
• 22-inch 1080P LCD screen for local video input display and IPC decoding display;
• Supports 3G-SDI high-definition video input interface;
• Supports 4-way 1080P high-definition network video access preview and storage;
• Adopts high-quality AAC audio encoding technology, supports 1-in 1-out audio, and comes with stereo speakers;
• Supports external HDMI and VGA monitors to achieve extended display output;
• Supports local storage (hard disk, U disk and mobile hard disk), comes with 1T hard disk storage;
• Brand-new UI operation interface, supports automatic scanning and adds IPC function;
• Supports infrared remote control operation control;
• Supports USB3.0 interface, which can realize high-speed recording and copying of audio and video;
• Supports H.265 efficient compression algorithm, which can greatly save storage space;
• Supports RS485 communication interface, PELCO-P and PELCO-D and other communication protocols, which can realize PTZ Control;
•Support key control to start and stop recording;
•Support video/image file retrieval and playback, support video loop overwrite;
•Support keyword search to improve retrieval efficiency;
